How to successfully disable basic authentication on Microsoft 365 before end of life support

Microsoft/Office 365 will stop supporting what is called Basic Authentication after October 2022, this means that any client app/device (iPhone, Scanners through SMTP, etc) using authentication methods on which is not possible to enforce MFA (multi-factor authentication) won't be able to login anymore

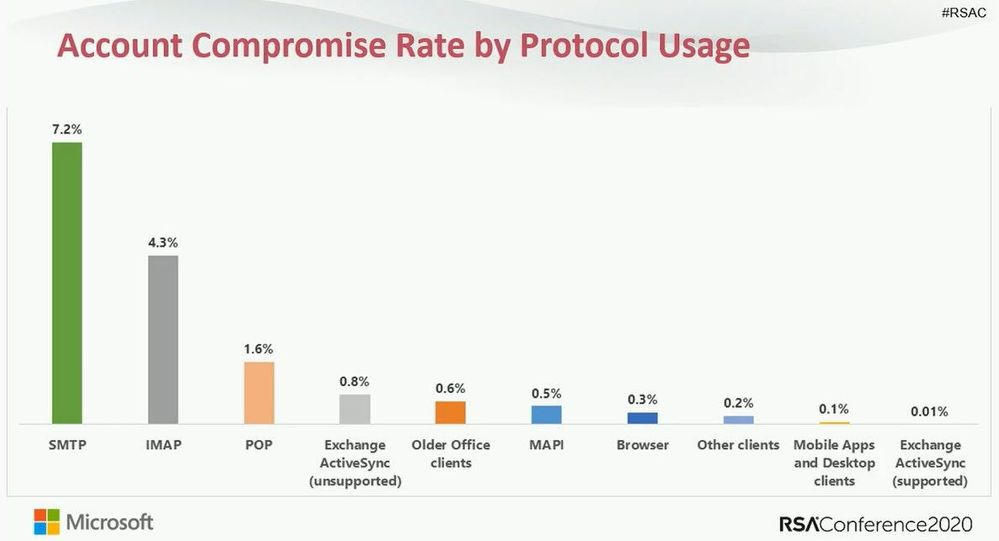

The main reason Microsoft decided to apply this security measures is related with the graph below, the most common source of emails sent through compromised accounts is stolen credentials using phishing attacks and logins through basic authentication methods. Basic authentication methods means the client device is connecting to the server through a channel which is not possible to enforce MFA.

Protocol methods and compromised credentials

To keep things simple , this means moving all logins to the Web based prompt (Modern Authentication)

From this:

Basic Auth Login

To this:

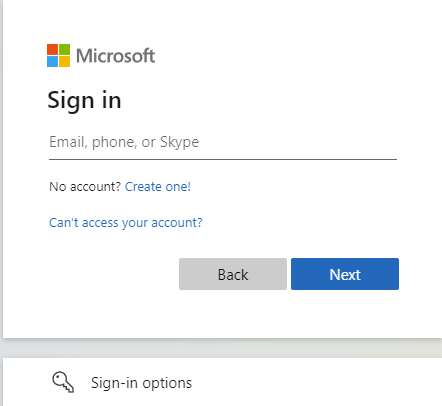

Modern Auth Login

Is my tenant still using basic authentication ?

If your tenant is recent you might never had the option to use basic authentication because your organization security defaults were enabled which doesn't allow the legacy method.
The easiest way to check is to go to your tenant admin page , click Settings on the left side and then Org Settings. From the list click Modern Authentication and depending on what you see from the following images you can already have Modern Authentication forced:

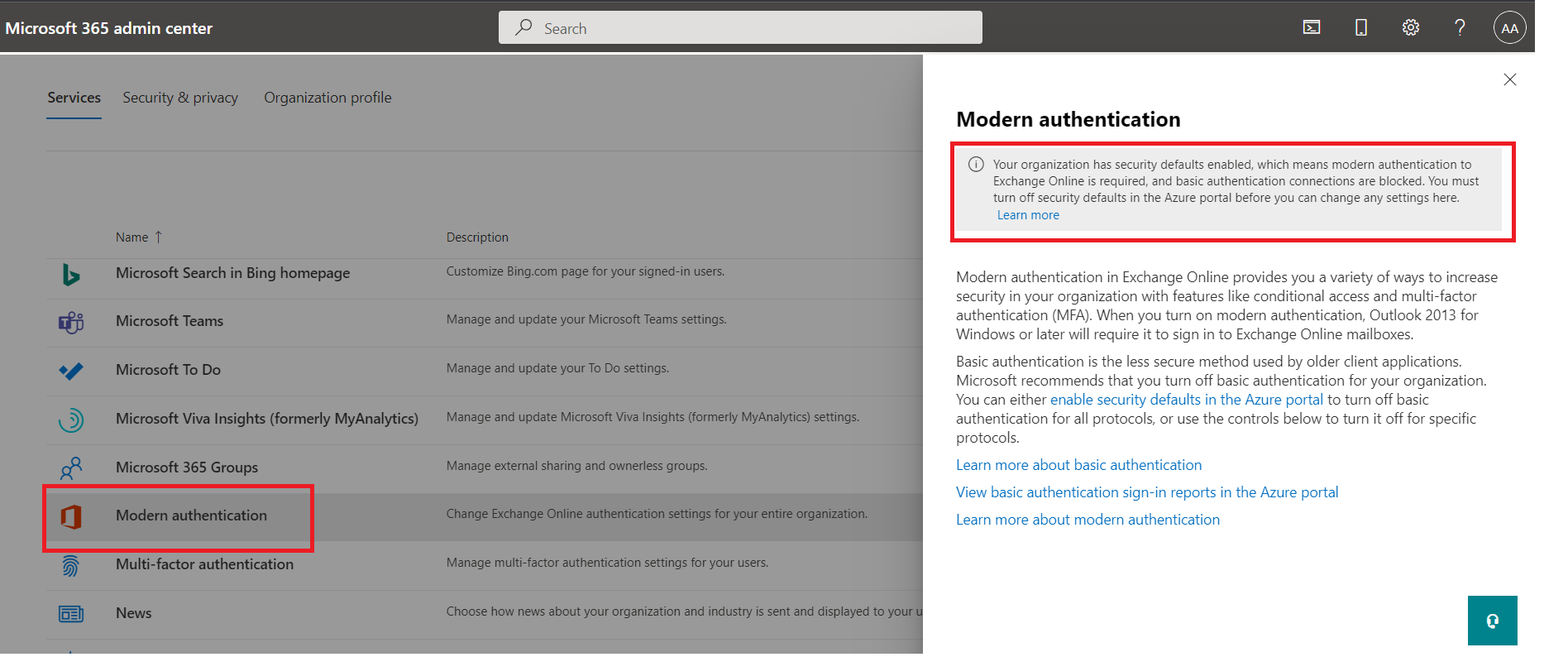

Modern Authentication forced (nothing to do):

Microsoft 365 modern authentication forced

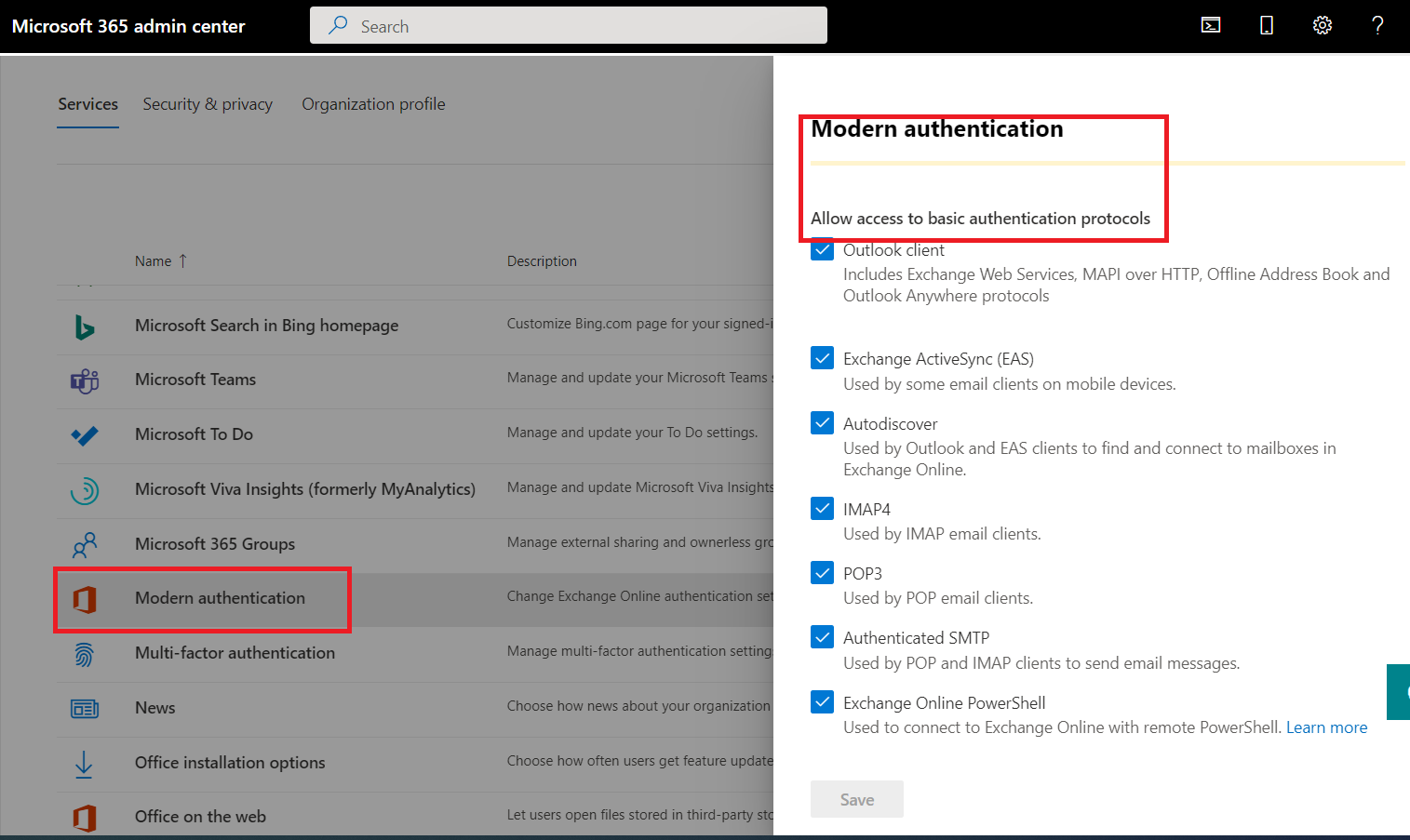

Tenant still allows Basic Authentication connections:

Microsoft 365 basic authentication allowed

If your tenant still allows Basic Authentication then you need to check if there are any accounts/devices using it.

Find Microsoft 365 users/devices still using Basic Authentication Method

There are two methods to check which Sign-ins are using Basic Auth, either through Azure Active Directory Portal -> Users -> Sign-in logs or through a Web App we've implemented which sends you daily list of sign-ins using the end of life auth method.

Using the Azure AD Sign-in logs:

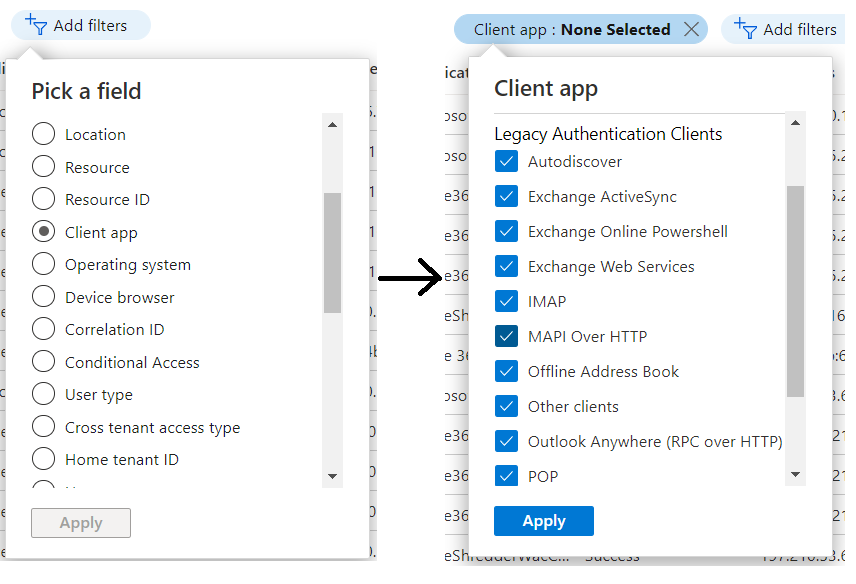

  • Go to the sign-in logs and click the Add filters
  • Select Client app and click "Apply".
  • Then click "Client app:none selected" and select all entries below "Legacy Authentication Clients" and click "Apply".

This will show sign-ins from users or devices using the Basic Auth method , which will stop working on October 2022, the list might not include all depending on the retention period your Azure Ad license supports.

Filter auzre ad sign-ins using basic auth

Use a Web App which sends you a list of devices using the Basic/Legacy Authentication methods

We've implemented a Web App which you can access here, which analyses the sign-in logs regularly and checks which devices/users are connecting to your Azure AD using the end of life authentication methods. You can choose to receive either a weekly or daily report with the list of clients using basic authentication directly to your email.

In order to understand if a sign in represents a new device for a user we store an encrypted hash of the user email on our Database. We don't use it for anything else except to check if the sign in came from a new device which needs to be configured to use Modern Authentication.
All data is deleted either at your request or reaching November 2022 when Microsoft plans to have disabled Basic Authentication from Microsoft 365 tenants.

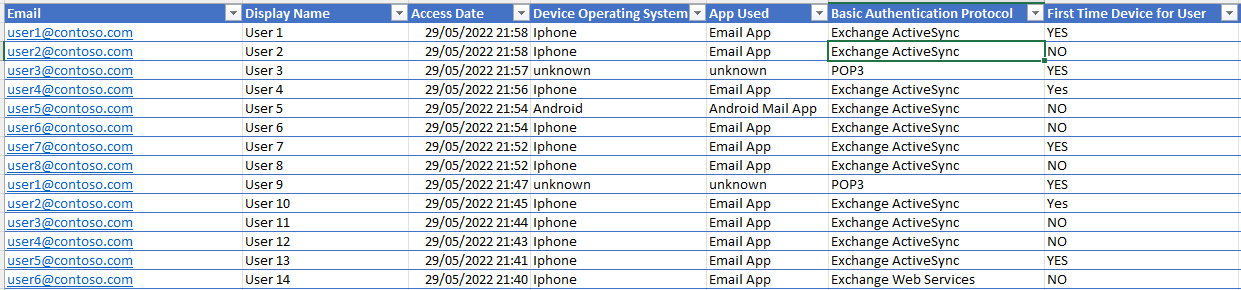

You receive through email an Excel file similar to the image below with a list of users, respective email and which device/app are using the basic authentication. We also send for each situation links suggesting on how to migrate the device/user to Modern Authentication (the data is just for illustration purposes).

Web app to list basic authentication devices on Microsoft 365

I've migrated the devices and users which were still using Basic Authentication, how can I prevent new ones from using it ?

After providing instructions to users on how to migrate their devices to Modern Authentication your tenant should prevent those users from adding new devices through legacy authentication.

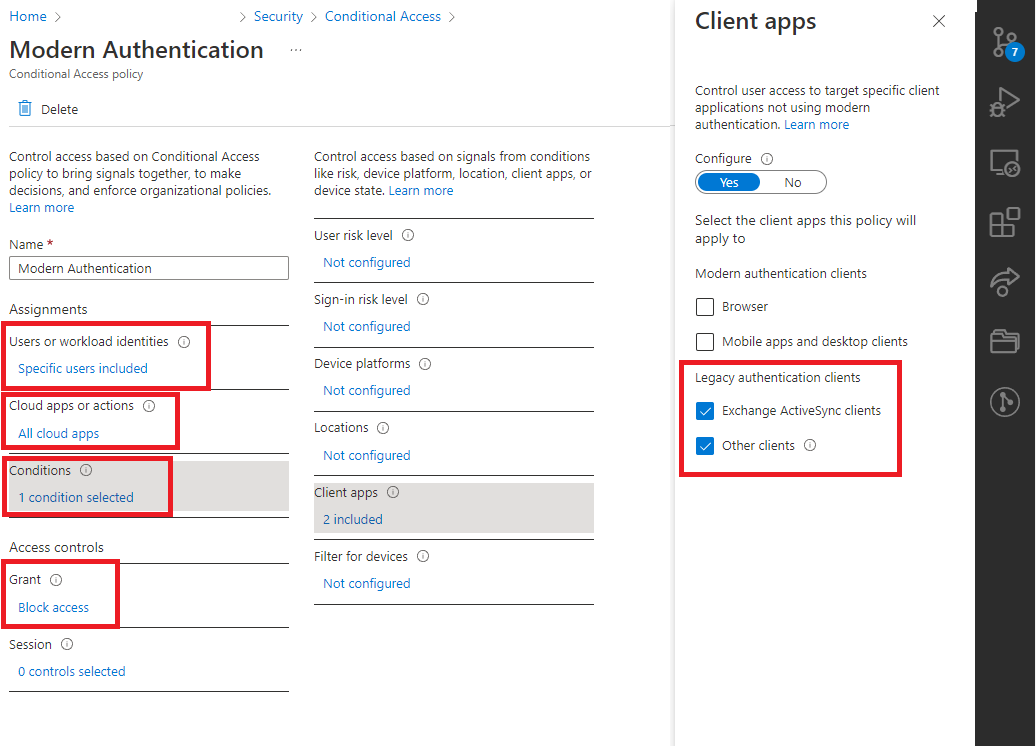

To achieve this we are going to create a new Group and use it in Conditional Access:

  • Under your Tenant Admin page create a new Group called Users with blocked Basic Auth
  • Open Conditional Access under Azure Active Directory -> Security
  • Under "Policies" click "New Policy" to create a new one
  • Call it "Enforced Modern Authentication"
  • In "Users or workload identities" specify which Group should be included. Under "Include" tab select the newly created group Users with blocked Basic Auth
  • Under Cloud apps or actions make sure Include -> App cloud apps is selected
  • Under Conditions select Client apps and select the legacy authentication clients
  • In Grant select Block Access
  • Finally make sure Enable Policy at the bottom is set to On

How to handle specific devices using basic authentication can be found on our next post
